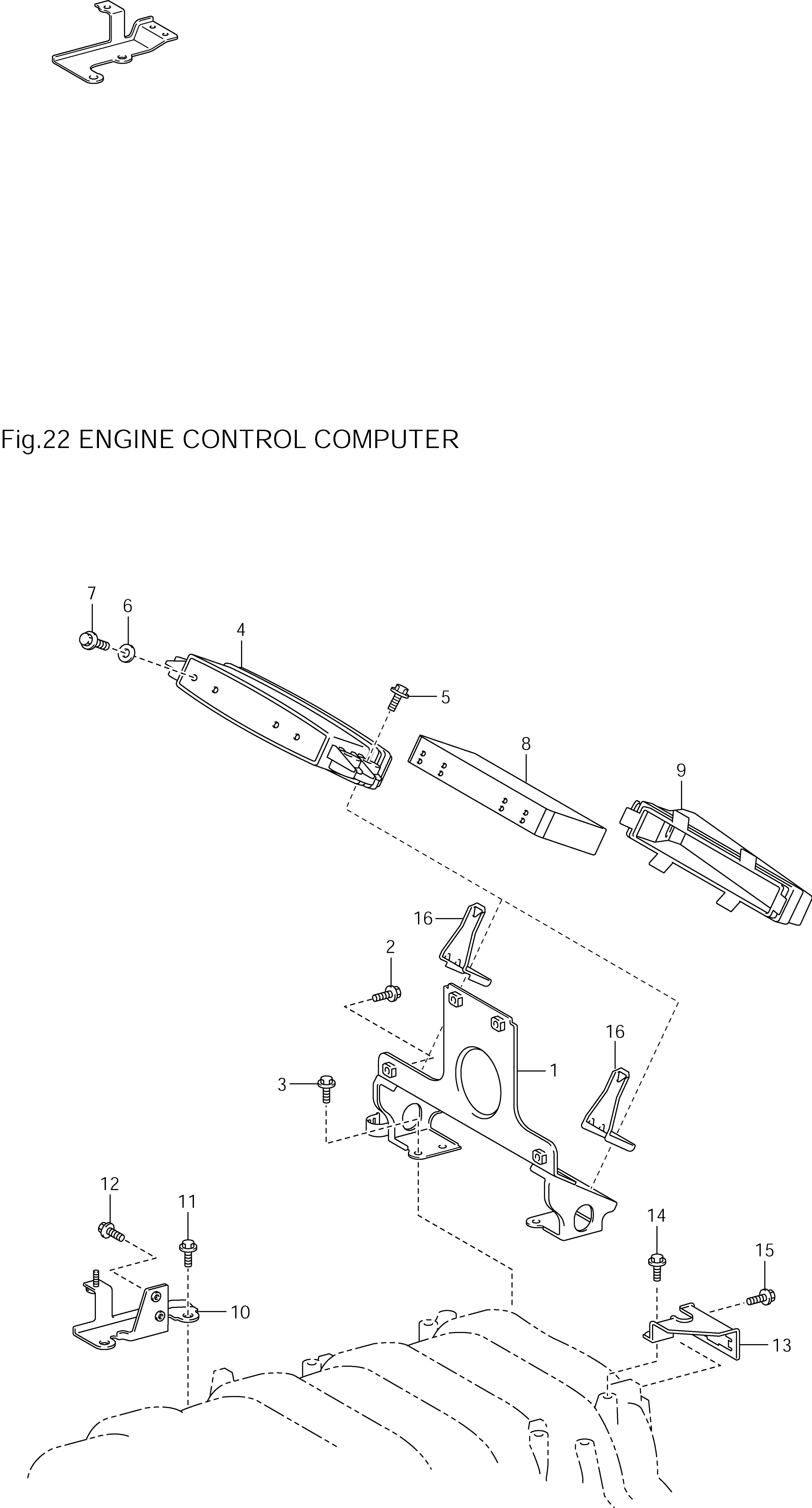

Engine Figure
Click image for full size version | Scroll down to see parts list
Engine Control Computer| Part Number | Description | Quantity | Reference No. | | BRACKET,ENGINE CONTROL COMPUTER | 1 | 1 | | BOLT,W/WASHER | 2 | 2 | | BOLT,W/WASHER | 4 | 3 | | CASE,ENGINE CONTROL COMPUTER | 1 | 4 | | BOLT,W/WASHER | 4 | 5 | | WASHER,SEAL | 4 | 6 | | BOLT,WASHER BASED HEAD HEXAGON | 4 | 7 | | COMPUTER,ENGINE CONTROL | 1 | 8 | | BOOT,WIRE HARNESS | 1 | 9 | | BRACKET,THROTTLE CONTROL CABLE | 1 | 10 | | BOLT | 2 | 11 | | BOLT,FLANGE | 2 | 12 | | BRACKET,WIRING HARNESS CLAMP | 1 | 13 | | BOLT,W/WASHER | 1 | 14 | | BOLT,FLANGE | 1 | 15 | | BRACKET,WIRING HARNESS CLAMP | 2 | 16 |
|
