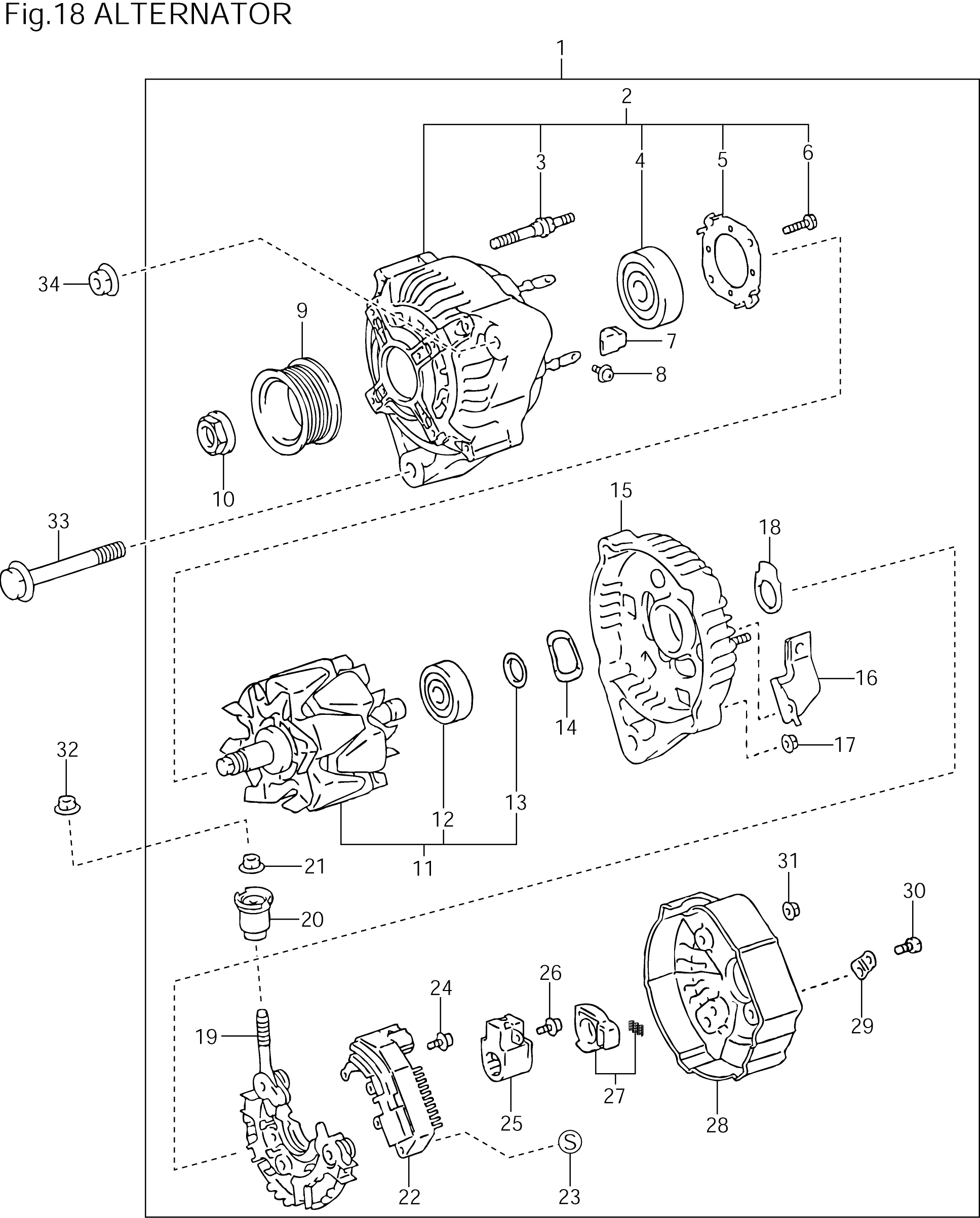

Engine Figure
Click image for full size version | Scroll down to see parts list
Alternator| Part Number | Description | Quantity | Reference No. | | ALTERNATOR ASSY,W/REGULATOR | 1 | 1 | | FRAME ASSY,DRIVE END | 1 | 2 | | BOLT,STUD | 4 | 3 | | BEARING(FOR ALTERNATOR DRIVE END FRAME) | 1 | 4 | | PLATE,BEARING RETAINER | 1 | 5 | | SCREW | 4 | 6 | | INSULATA,TERMINAL,B | 1 | 7 | | SCREW,W/WASHER | 4 | 8 | | PULLEY,ALTERNATOR | 1 | 9 | | NUT,PULLEY LOCK | 1 | 10 | | ROTOR ASSY,ALTERNATOR | 1 | 11 | | BEARING(FOR ALTERNATOR ROTOR) | 1 | 12 | | COVER,ALTERNATOR BEARING | 1 | 13 | | WASHER,ALTERNATOR | 1 | 14 | | FRAME,ALTERNATOR RECTIFIER END | 1 | 15 | | CLIP,ALTERNATOR CORD | 1 | 16 | | NUT | 4 | 17 | | SEAL,S/ASSY PLATE | 1 | 18 | | HOLDER,ALTERNATOR,W/RECTIFIER | 1 | 19 | | INSULATION,WASHER TERMINAL | 1 | 20 | | NUT | 1 | 21 | | REGULATOR ASSY,GENERATOR | 1 | 22 | | SCREW,W/WASHER | 2 | 23 | | SCREW | 1 | 24 | | HOLDER ASSY,ALTERNATOR BRUSH | 1 | 25 | | SCREW | 2 | 26 | | BRUSH,COVER | 1 | 27 | | COBER,ALTERNATOR REAR END | 1 | 28 | | PLATE,RECTIFIER | 1 | 29 | | SCREW | 1 | 30 | | NUT | 3 | 31 | | NUT | 1 | 32 | | BOLT,W/WASHER | 1 | 33 | | NUT,FLANGE | 1 | 34 |
|
