TMS Reference Figures - Engine

Engine Figure

Click image for full size version | Scroll down to see parts list

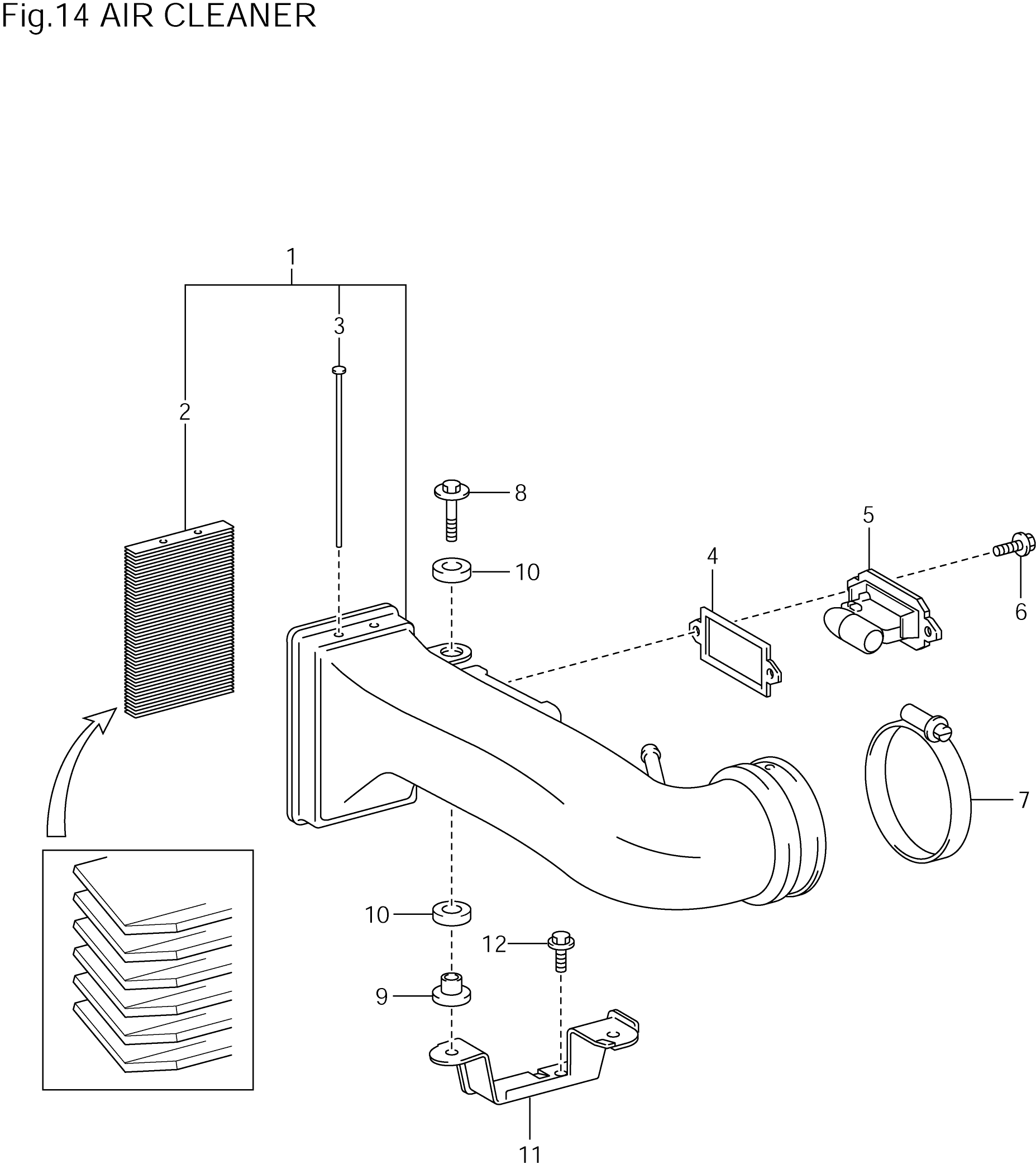

Air Cleaner

Part NumberDescriptionQuantityReference No.
CONNECTOR ASSY,INTAKE AIR11
ELEMENT SUB-ASSY,AIR CLEANER FILTER12
PIN,W/HEAD23
GASKET,AIR FLOW METER14
METER SUB-ASSY,INTAKE AIR FROW15
BOLT26
CLAMP,HOSE17
BOLT W/WASHER18
COLLAR19
CUSHION210
STAY,AIR CONNECTOR111
BOLT W/WASHER112
