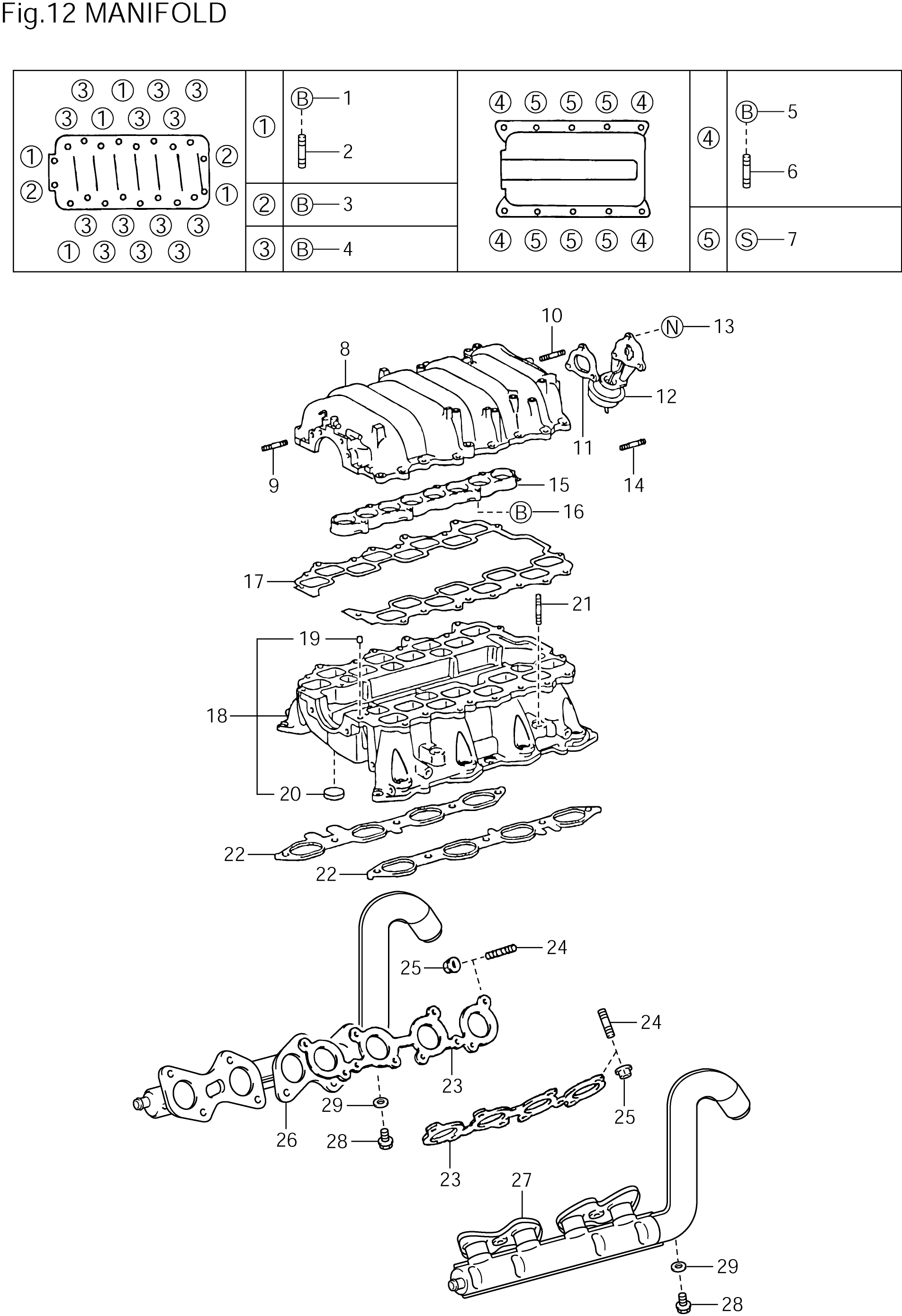

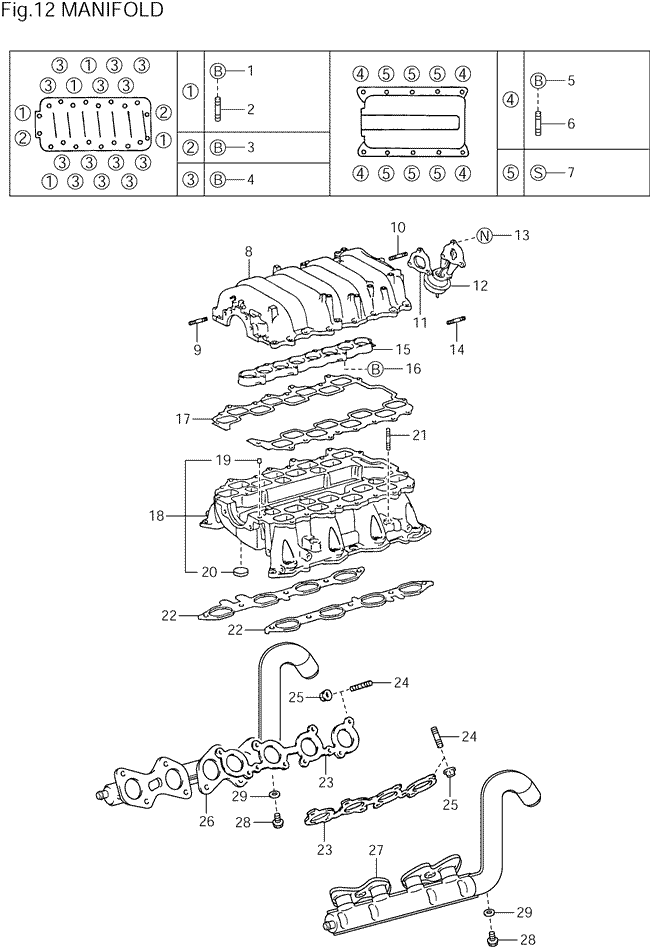

Engine Figure
Click image for full size version | Scroll down to see parts list
Manifold| Part Number | Description | Quantity | Reference No. | | NUT | 5 | 1 | | BOLT,STUD | 5 | 2 | | BOLT,FLANGE | 2 | 3 | | BOLT,FLANGE | 12 | 4 | | NUT,W/WASHER | 4 | 5 | | BOLT,STUD | 4 | 6 | | SCREW,HEX LOBULAR | 6 | 7 | | MANIFOLD SUB-ASSY,INTAKE,UPR | 1 | 8 | | BOLT,STUD | 2 | 9 | | BOLT,STUD | 3 | 10 | | GASKET,SURGE TANK COVER | 1 | 11 | | ACTUATOR,INTAKE AIR CONTROL VALVE | 1 | 12 | | NUT | 3 | 13 | | BOLT | 2 | 14 | | VALVE ASSY,INTAKE AIR CONTROL | 1 | 15 | | BOLT,WASHER BASED HEAD HEXAGON | 6 | 16 | | GASKET,INTAKE FLANGE | 1 | 17 | | MANIFOLD SUB-ASSY,INTAKE,LWR | 1 | 18 | | PIN,RING | 2 | 19 | | PLUG,TIGHT | 1 | 20 | | BOLT,STUD | 4 | 21 | | GASKET,INTAKE MANIFOLD | 2 | 22 | | GASKET,EXHAST MANIFOLD | 2 | 23 | | STUD,HEX LOBULER(FOR MANIFOLD TO CYLINDER HEAD) | 16 | 24 | | NUT | 16 | 25 | | MANIFOLD SUB-ASSY,EXHAUST,RH-A | 1 | 26 | | MANIFOLD SUB-ASSY,EXHAUST,LH-A | 1 | 27 | | PULG,STRAIGHT SCREW W/HEAD | 2 | 28 | | GASKET | 2 | 29 |
|
