Engine Figure

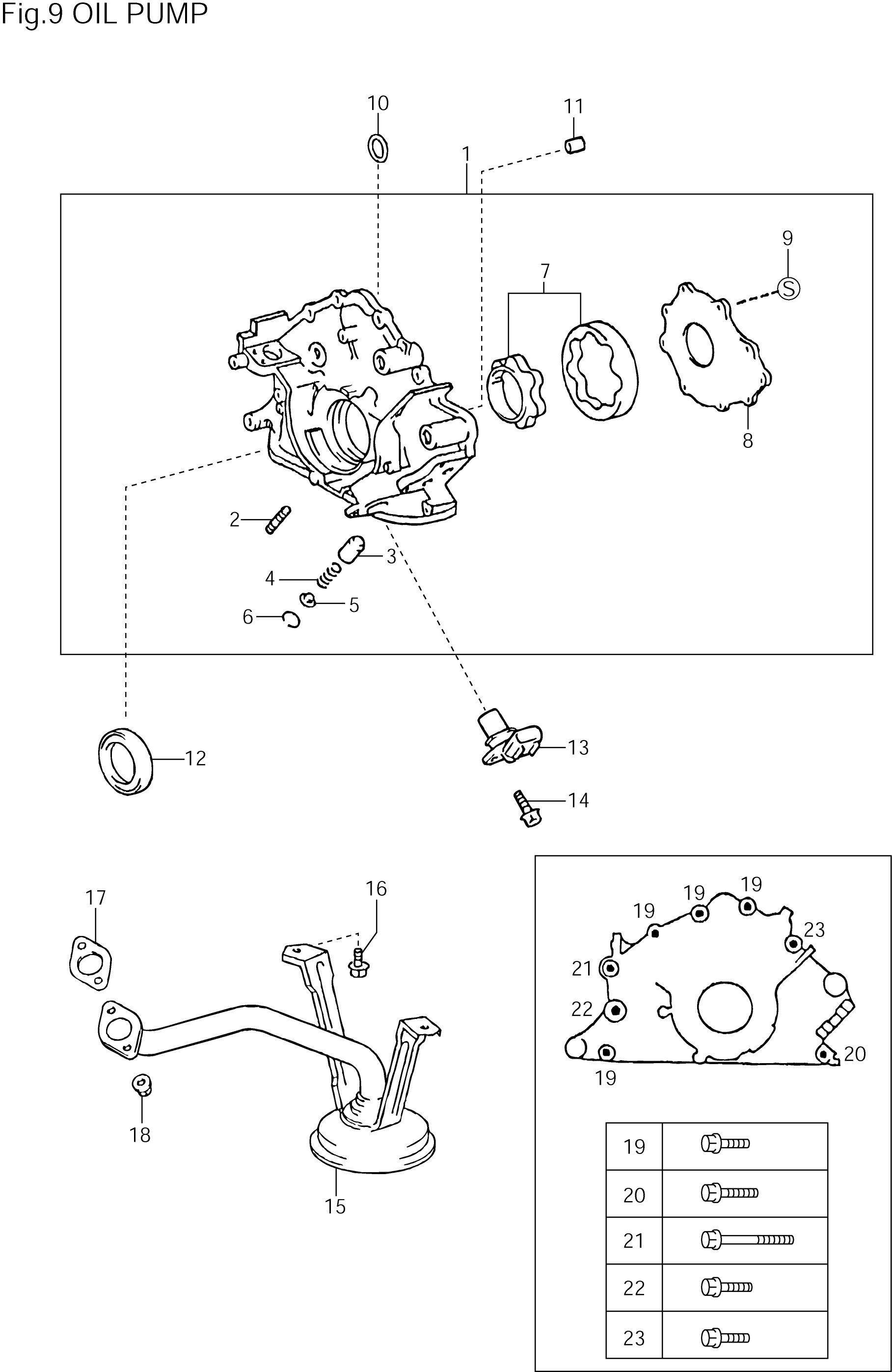

Click image for full size version | Scroll down to see parts list
Oil Pump| Part Number | Description | Quantity | Reference No. | | PUMP ASSY,OIL | 1 | 1 | | BOLT,STUD | 2 | 2 | | VALVE,OIL PUMP RELIEF | 1 | 3 | | SPRING,OIL PUMP RELIEF VALVE | 1 | 4 | | PLUG,OIL PUMP RELIEF VALVE | 1 | 5 | | RING,SNAP | 1 | 6 | | ROTOR SUB-ASSY OIL PUMP | 1 | 7 | | COVER,OIL PUMP | 1 | 8 | | SCREW | 10 | 9 | | RING,O(FOR OIL PUMP) | 1 | 10 | | PIN,RING(FOR OIL PUMP SET) | 2 | 11 | | SEAL,TYPE T OIL(FOR OIL PUMP) | 1 | 12 | | SENSOR,CRANK POSITION | 1 | 13 | | BOLT,W/WASHER | 1 | 14 | | STRAINER SUB-ASSY OIL | 1 | 15 | | BOLT,W/WASHER | 2 | 16 | | GASKET,OIL STRAINER | 1 | 17 | | NUT | 2 | 18 | | BOLT,W/WASHER | 4 | 19 | | BOLT,W/WASHER | 1 | 20 | | BOLT,W/WASHER | 1 | 21 | | BOLT,W/WASHER | 1 | 22 | | BOLT,HEXAGON SOCKET HEAD CAP | 1 | 23 |
|
