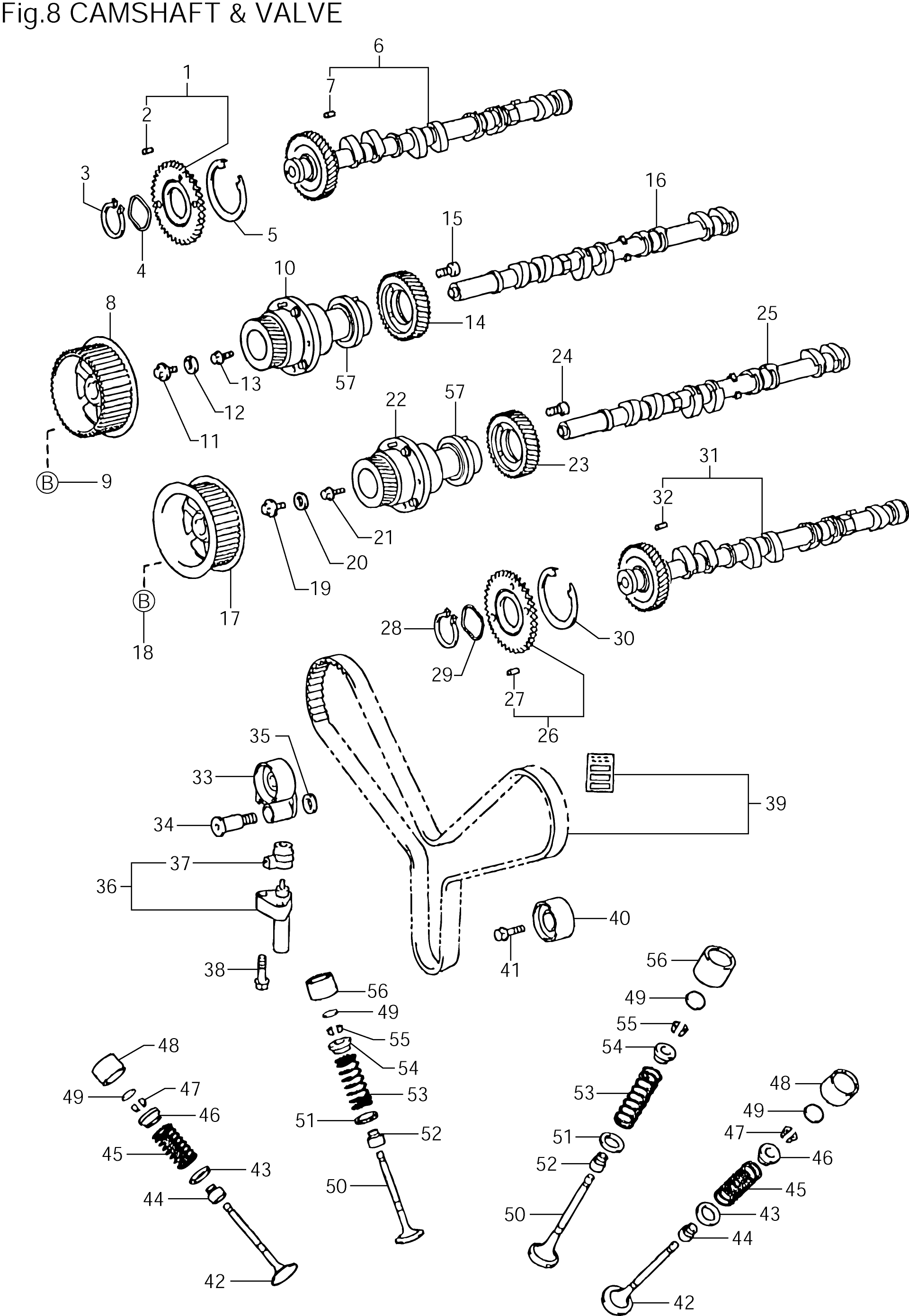

| Part Number | Description | Quantity | Reference No. |
| GEAR,CAMSHAFT SUB | 1 | 1 |
| PIN,STRAIGHT | 1 | 2 |
| RING,SHAFT SNAP(FOR CAMSHAFT SUB GEAR) | 1 | 3 |
| WASHER,WAVE(FOR CAMSHAFT SUB GEAR) | 1 | 4 |
| SPRING,CAMSHAFT GEAR | 1 | 5 |
| CAMSHAFT,SUB-ASSY EXHAUST,RH | 1 | 6 |
| PIN | 1 | 7 |
| PULLY,CAMSHAFT TIMING | 1 | 8 |
| BOLT | 4 | 9 |
| TUBE ASSY,CAMSHAFT TIMING | 1 | 10 |
| PLUG,STRAIGHT,SCREW W/HEAD | 1 | 11 |
| WASHER,SEAL | 1 | 12 |
| NUT,UNION | 1 | 13 |
| GEAR,CAMSHAFT DRIVE | 1 | 14 |
| BOLT | 2 | 15 |
| CAMSHAFT,SUB-ASSY,INTAKE,RH | 1 | 16 |
| PULLY SUB-ASSY,CAMSHAFT TIMING,LH | 1 | 17 |
| BOLT | 4 | 18 |
| PLUG,STRAIGHT,SCREW W/HEAD | 1 | 19 |
| WASHER,SEAL | 1 | 20 |
| NUT,UNION | 1 | 21 |
| TUBE ASSY,CAMSHAFT TIMING | 1 | 22 |
| GEAR,CAMSHAFT DRIVE | 1 | 23 |
| BOLT | 4 | 24 |
| CAMSHAFT SUB-ASSY,INTAKE,LH | 1 | 25 |
| GEAR,CAMSHAFT SUB W/PIN | 1 | 26 |
| PIN,STRAIGHT | 1 | 27 |
| RING,SHAFT SNAP | 1 | 28 |
| WASHER,WAVE | 1 | 29 |
| SPRING CAMSHAFT GEAR | 1 | 30 |
| CAMSHAFT SUB-ASSY,EXHAUST,LH | 1 | 31 |
| PIN | 1 | 32 |
| IDLER SUB-ASSY,TIMINGBELT,NO.1 | 1 | 33 |
| SHAFT,TIMING BELT IDLER | 1 | 34 |
| WASHER,PLATE | 1 | 35 |
| TENSIONER ASSY,TIMING BELT | 1 | 36 |
| COVER,TIMING BELT TENSIONER DUST | 1 | 37 |
| BOLT | 2 | 38 |
| BELT,TIMING | 1 | 39 |
| IDLER SUB-ASSY,TIMING BELT,NO.2 | 1 | 40 |
| BOLT,WASHER BASED HEAD HEXAGON | 1 | 41 |
| VALVE,EXHAUST | 16 | 42 |
| SEAT,VALVE SPRING | 16 | 43 |
| SEAL,VALVE STEM OIL(EXHAUST) | 16 | 44 |
| SPRING,COMPRESSION(FOR INNER) | 16 | 45 |
| RETAINER,VALVE SPRING | 16 | 46 |
| LOCK,VALVE SPRING | 32 | 47 |
| LIFTER,VALVE | 16 | 48 |
| SHIM,VALVE ADJUSTING T=2.000 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.020 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.040 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.060 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.080 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.100 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.120 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.140 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.160 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.180 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.200 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.220 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.240 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.260 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.280 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.300 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.320 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.340 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.360 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.380 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.400 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.420 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.440 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.460 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.480 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.500 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.520 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.540 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.560 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.580 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.600 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.620 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.640 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.660 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.680 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.700 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.720 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.740 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.760 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.780 | 32 | 49 |
| SHIM,VALVE ADJUSTING T=2.800 | 32 | 49 |
| VALVE,INTAKE | 16 | 50 |
| SEAT,VALVE SPRING | 16 | 51 |
| SEAL,VALVE STEM OIL(INTAKE) | 16 | 52 |
| SPRING,COMPRESSION(FOR INNER) | 16 | 53 |
| RETAINER,VALVE SPRING | 16 | 54 |
| LOCK,VALVE SPLING RETAINER | 32 | 55 |
| LIFTER,VALVE | 16 | 56 |
| SEAL,TYPE T OIL | 2 | 57 |
