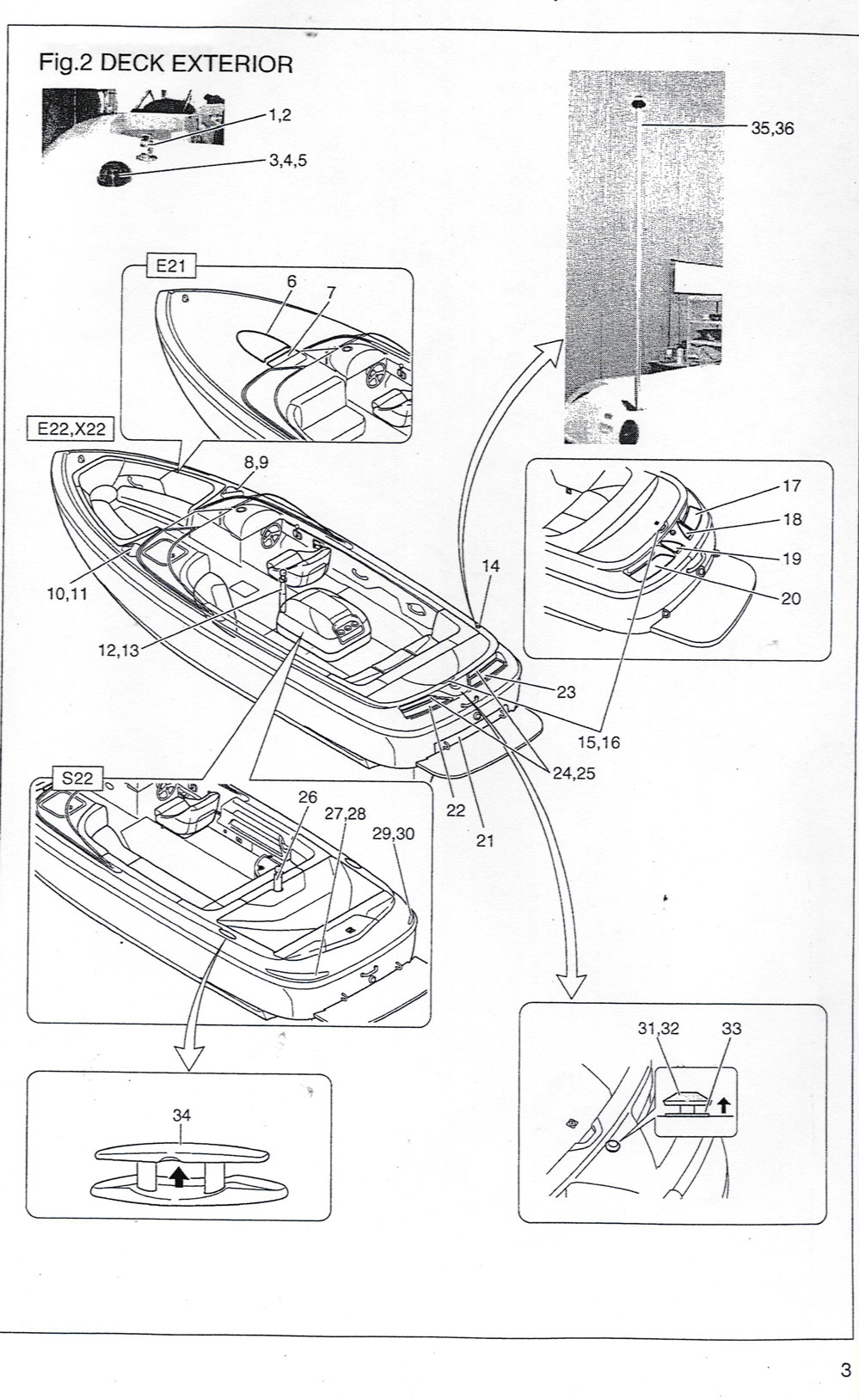

Figure 2

Print the larger version   |   Scroll down for parts list

Print the larger version   |   Right click to download all figures as .pdf (69 Megs)

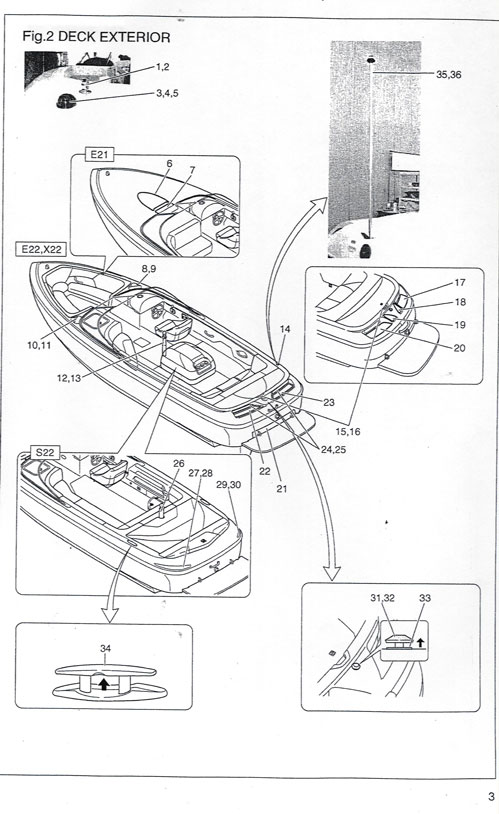

Figure 2


Part No.DescriptionFigureNumberOriginal PriceShipping*Purchase
Eye,Bow,Lifting,SS2 1
Cleat,RoundPopUp,SS,White2 31
Cleat,StandardPopUp,SlimLine,SS2 34
BackingPlate,RoundPopUpCleat,SS2 33
Cleat,RoundPopUp,Black,SS2 32
Pad,Transom,6"x46",ClearUrethane,X222 21
Pad,TransomStep,NonSkid,Port,Black2 20
Pad,TransomStep,NonSkid,Stbd,Black2 17
Pad,BowLiftEye,NonSkid,1-15/16",Black2 2
Pad,TransomStep,NonSkid,Port,E22,Black2 22
Pad,TransomStep,NonSkid,Stbd,E22,Black2 23
Pad,BowDeck,NonSkid,E21,Clear2 6
SkiPylon,AnodizedSilver,E21,E22,X22,Aluminum2 12 800 80
SkiPylon,AnodizedSilver,12",S22,SX22,Aluminum2 26 800 60
SkiPylon,Aluminum,E21,99E22,Black2 13 800 60
Light,Navigation,Bow,Oval,12v,Black2 3
Light,Anchor,42"Pole,12v,Chrome ATTWOOD 3942-12 35
Bulb,Replacement,42"AnchorLight,12v2 36
Base,Deck,AnchorLight,Plastic,Black2 14
Light,Navigation,Bow,Oval,X22Only,12v,White2 4
Bulb,Replacement,AnyBowNavigationLight2 5
Handle,TransomPull,X22,White2 16
Cover,AirVent,Transom,Stbd,E21,Alum,Black2 18
Cover,AirVent,Transom,Port,E21,Alum,Black2 19
Cover,AirVent,Windhshield,E21,Alum,Black2 7
Cover,AirVent,Bow,Port,Triangle,E22,Alum,Black2 10
Cover,AirVent,Bow,Stbd,Triangle,E22,Alum,Black2 8
Cover,AirVent,Bow,Stbd,Triangle,E22,Alum,White2 9
COVER AIRVENT BOW PORT TRI2 25
Cover,AirVent,Stbd,Fiberglass,00S22,Gray2 29
Cover,AirVent,Port,Glass,01,S22,SX22,ShadowGray2 28
