TMS Reference Figures - Boat

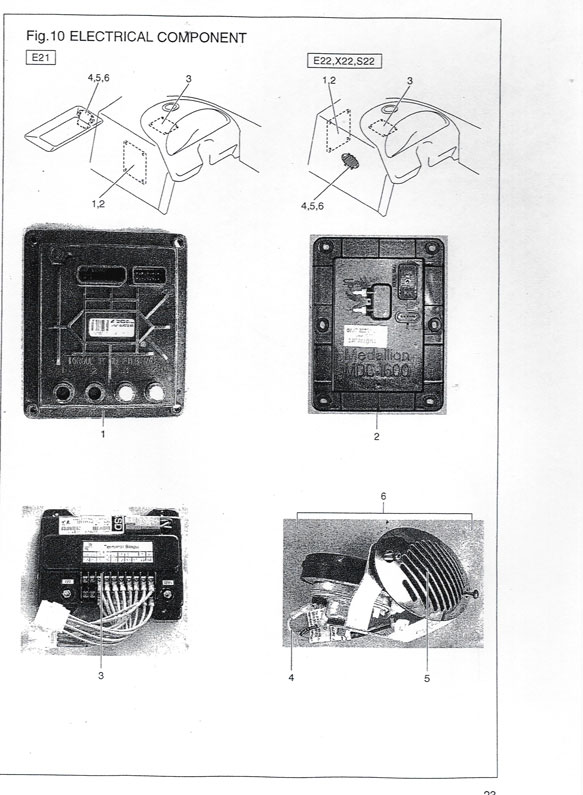

Figure 10

Print the larger version   |   Scroll down for parts list

Print the larger version   |   Right click to download all figures as .pdf (69 Megs)



Figure 10


Part No.DescriptionFigureNumberOriginal PriceShipping*Purchase
Harness,HornDiodeJumper10 4
MDC replacement, 1999 Instrument 7 Gauge Dash, replace w Analog Rick Cohn 10200 Newington drive Orlando, Fl 3283610 2 1200 45
MMDC + 4 original GAUGES tested and wire harness] Boatetrade@aol.com for directions10 1 300 45
DECC REPLCEMENT Send PANEL W/O KEY SWITCH + DECC and 2 button wth orange wire Rick Cohn 10200 Newington drive Orlando, Fl 3283610 3 950 45
Cover,Horn,Plastic,w/Hardware10 5
Screw,Horn,10-24x3/4",Phil,Pan10 5
Horn,Hidden,w/Cover&Screws,Plastic10 6

* SHIPPING INFO: Most items ship next day after Paypal funds are secured. Shipping cost may vary depending on quantity of items purchased, weight and other variables. If additional shipping funds are required, Capt Rick will contact you. For more info email Capt Rick

DISCLAIMER: The seller of these parts is an authorized Toyota Parts Distributor using customer drop shipment. The site owners and administrators of epicmarine.com hold no liability for parts purchased through this site. This is a community site and NOT affiliated with the now defunct Toyota Marine Sports division of Toyota. As a community site, we depend on the integrity of it's members.

Download the entire Parts List in Excel format: Marine_Parts_List_2005.xls
